This instrument is a computer controlled assembly of percussion and 'effect' intruments. All sound sources incorporated in this instrument are non-pitched and share a vague reference to nature sounds: we encounter thunder, rain, woodpeckers, wind, storm, a bird, lightning crackling wood ... In this respect it could be considered a realisation of the first category of soundsources in Luigi Russolo's Intonarumori. Also, soundwise, this futurist reference is pretty obvious. A bird was donated by Moniek Darge, and lives since on a little piece of grass underneath <ThunderWood>.
The instrument can be played by standard MIDI commands, using our GMT software but is also capable of listening to pure algorithmic commands.
The instrument was finalized on july 18th of 2000. Later, the lightning was added. The storm-wind module, as well as the bird sound, was designed and finished in august 2002. High resolution pictures are available on request.
<ThunderWood> was made and designed to be a part of the <Slag-Werk> project realized by Godfried-Willem Raes for 'Web Strikes Back' at the occasion of the Tromp biannual, october 2000 in Eindhoven, the Netherlands. It now is a standard robot component in the Logos M&M orchestra.
The <ThunderWood> robot uses dedicated hardware, designed for musical automats such as player pianos, percussion instruments, organs and even bowed instruments. Details can be found in our course on experimenal music on this same website.
The hardware consists of following printed circuit boards:
1. a parallel bus-board, designed for many of our automated instruments. (cfr. Klung, Player Piano, Harma, Springers, Troms, Vibi, Belly...) This board gets its input from a parallel printer port from a stardard wintel PC running Windows. However, it is also possible to use any other fast microprocessor or controller as long as it can implement centronics like outputs. The pc board for this circuit contains the 5V regulator used for the digital signal sections on the velo boards as well. The circuit, a demultiplexer, looks like:
2. Note driver board. This pc board houses the power mosfets used to steer the solenoids used for activating the sound sources. [ comment on these circuits, first developed for our player piano and also used in automats such as <Klung>, can be found at http://www.logosfoundation.org/logos/kursus/2116.html. ]
3. Pincode decoder board. This pc board houses the comparator such that the power for the solenoids and other devices is not switched on before the latches are cleared. The board houses solid state relais as well as independent 5V dc power supply for the logic and control circuitry. The schematic looks like:
There are 4 woodblocks in the instrument, each provided with a number of solenoids driving the beaters. The lowest woodblock has 5 beaters, the second lowest 4 beaters, the second highest 3 beaters and the highest block got only 2 beaters. The woodblocks are handmade from dark tropical wood and hollowed out. The slit, also functioning as a cavity resonator, is underneeth the blocks.
In addition the instrument has as set of low sounding bamboo windchimes, the latter are activated the same way as the brass thundersheet, suspended in top of the instrument..
A wind-machine was added to the instrument also. This engine uses a strong DC motor (700W / 12V - 210V DC) since this made precise speed control easy to implement. The motor rotates a perforated stainless steel cylinder taken from an old laundry machine. Over the cylinder a piece of heavy canvas hangs, causing the wind-noise production proportional to motor speed. In the picture to the left, the canvas is removed to better reveal the mechanism. The motor is controlled using one of the 8 bit ports on the main PC demultiplexer board. This data is fed to a DAC connected to a high power opamp, driving the motor. Kevlar or Tivex may be used instead of canvas to produce the wind noise.
A ratchet , controlled by a synchronuous AC motor with speed reduction mechanism makes the cracling wood sounds in this instrument. As can be seen from the picture, the wood tongues are taken from an old metric size.
A rainmaker was implemented by filling an RCF 300Watt loudspeaker [a 20cm woofer with glassfiber cone as used in RCF's Monitor 8 enclosures] with fine grains or pellets. The speaker is mounted underneeth the instrument. Over the speaker we mounted a resonator taken from a turkish darbukkah drum. [cfr. picture] This resonator is mounted upside down. The assembly is placed such that the cone is horizontal. The speaker is driven just as if it were an ordinary solenoid and causes a rain sound when driven with a series of slow pulses. To damp any remaining speaker noises (caused by the square waves) be did provide a simple LC low pass filter (cut off frequency at 77 Hz). Maximum allowable DC current through the speaker coil should be limited to 1.5A at 12V maximum. With the low pass filter, we can power this part of the circuit from 45V directly. Needless to say that the capacitors in the circuit as shown need to be bipolar types!
4. The power mosfets we used for controlling these solenoids are Harris RFP10N12L (or the equivalent IRL640), since these switch on TTL levels and are capable of dissipating 60Watts. Cooling is not required, since the current flows only in bursts for very short times. The current rating is 10A and their Uds limit is 120V. The rather high gate capacitance (1200pF) is not a real problem since switching speeds in this application are inherently pretty slow. For this reason we did not fit a resistor between gate and ground in the driver circuit. Note that when the power suppy is switched on, all latches would go to a high state, thus sounding al notes at the same time. To avoid this, we provided the pincode decoder board described earlier. Note that it is impossible to operate the instrument before sending the required pincode to the proper register. This is taken care of automatically in our <GMT> code and hardware library (h_nih.dll and g_noh.dll)

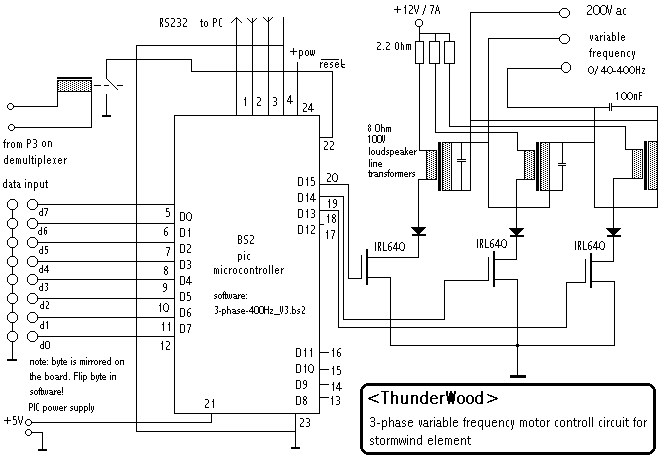

5. The Storm component of <Thunderwood> was realised with a small cavity resonator coupled to a linear cone made off brass. The fan used to implement it was taken from an old aircraft and hence its motor runs off a 3-phase 200V 400Hz frequency. We designed a 3-phase generator using a Basic Stamp (a BS2) to generate the required voltage. The speed of rotation can be controlled by sending a byte to the port this microcontroller is connected to. Due to the concept of the firmware, the circuit will react to commands with variable latency: when running at maximum speed ,latency will be 140ms, whereas when running at 20Hz, latency can be as high as 2.8 seconds. Note that suction wind is used , and therefore the horn and the cavity resonator are mounted on the side of the fan. The strongly one-directional windflow from the blowing side does not yield good musical results! Cavity resonators work best when driven with a turbulent airflow.
6. For the DC motor controlling the wind machine a special circuit was designed:
This board connects directly to the parallel port demultiplexer board shown above, more precize, to its first 'reserved' 8 bit board. It is a simple 8-bit DAC converter followed by an opamp to convert the current output to a voltage between 0 and 10 Volts (Vref). This op amp in its turn steers another opamp to convert this again into a proportional current via the power mosfet (IRF540) to the DC motor. In the final design Rb was choosen to be 4 Ohms. thus limiting the current to 2.5 amps. The power supply in the final design (+/- 15 volts in the original circuit) was reduced to +/- 12 Volt and derived from a small Analog Devices switcher, type 941. An oldie in fact, but we had some in stock... Also, in the circuit do never forget to draw (and solder...) the diode over the motor to suppress inductive peaks that could be harmfull or even detrimental to the power mosfet. Also note that, since in this application the mosfet works in a linear mode, it does dissipate quite some power. So cooling is essential! The voltage driving the motor may be higher then 24V, but should never exceed 100V since thats the maximum our mosfet can cope with. As to current, there is plenty of headroom, since the IRF540 can handle up to 20 Amps.
7. The bird sounds were added to <ThunderWood> in august 2002. The mechanism uses a small pump driven by a solenoid. The bird sound is produced by a special anticonical high pitched organ pipe. A mechanism making use of a threaded rod passed and rotated through a piece of hardwood, driven by a DC motor with speed reduction gears, was realized in a first attempt, but needed too much maintenance (rosin!) to be reliable in this automat. The pump mechanism implemented now, uses velocity controll for the air burst, but cannot make long sustained sounds. The solenoid used is a Lucas Ledex type, as used in our player piano. It is connected to the 48V power supply. The return spring is build into the pump.

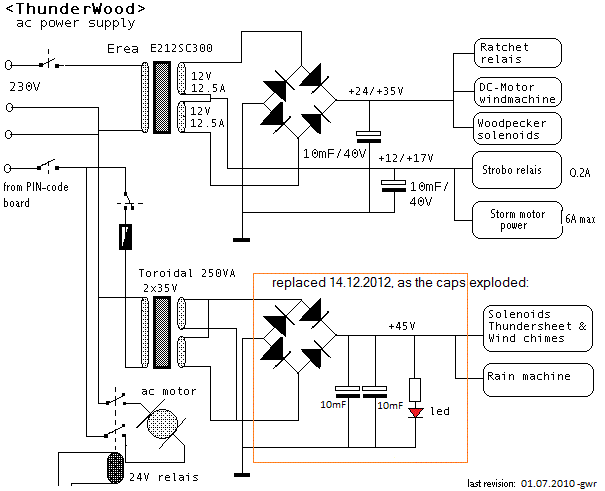

8. The power supply for this instrument is rated for 650Watts. Thunderwood was not designed for mobile use and therefore cannot be operated from batteries.
The power supply is kept very simple and consists of two hefty building blocks, mounted on the base of the automat on the right and the left side. Note that this power supply delivers three different voltages. Very thick wiring was used since we are dealing with pretty high currents here. (At times up to 20 Amps!). The somewhat strange looking power supply with the toroidal transformer can be explained because we modified an existing Velleman power amplifier supply with split voltages, to serve for this new purpose, by connecting both windings in parallel. The value for the fuse in the power line (accidentally omitted in the circuit drawing) is 2Amps, slow.
If you are using <GMT> under Power Basic, you can use all specific hardware control functions and procedures provided in our library (g_nih.dll or g_noh.dll) . A midi command converter was written in <GMT> by Kristof Lauwers and the author. The midi mapping is as follows:
For those prefering to see the mapping in 'staff' notation:
Compositions for <ThunderWood>:
Simulator for all PC's with a soundcard - DOWNLOAD NOW
Collaborators on this project:
Insurance value: 5.300 Euro.
Note for organizers: this instrument is very high and cannot be mounted lower than the height given. Make sure the space you provide allows for the height of this instrument: 3.2 meters. During transportation, the upper part can be taken off, such that transportation requires a van with an internal height of only 1m65. <ThunderWood> is mounted on 4 autonomous wheels with brakes, so it can easily be positioned and repositioned. However, the automat should never be put flat but always stay in a vertical position. <ThunderWood> is not suitable for open air performances, since the electronic circuitry is fully exposed and not wheater protected.
The <Thunderwood> automat can be heard on the Logos Public Domain CD <Automaton> (LPD007). as well as, in combination with many more automats, on LPD008 <M&M>, a CD recorded by the Logos M&M ensemble.
Last update: 2017-05-30
Repair and maintenance notes:
22.04.2004: Windmachine motorcircuit: IRF540 burned out. Replaced with same type. Uref checked on DAC board. Measures 9V (the schematic mentions 10V), but that should not be a problem.
23.08.2006: Start redesigning thunderwood making use of PIC controllers.
