The microprocessor board to accomplish this, basically parses incoming midi and outputs it again, leaving out all commands that are not implemented on Hybr and HybrHi. On receiving a power-on command (Ctrl 66, with any non zero value), it will switch on the power relay used for powering up both Hybr and HybrHi. To achieve this a relay is used in the hardware, inducing a 8 ms delaytime. After reception of this command, we give both robots some time to start up properly (1.5 seconds) and only after that time has passed, ctrl 66 will be sent by the booter to the robots. During this time interval, the robots will be deaf for midi commands. The green LED on the booter board will lite up when commands can be sent.

After reception of a power-down command, the power relay is switched off and again a delay is inserted to make sure all capacitors on the robots are fully discharged. During this time, again, no commands can be sent to the robots.

Circuit:

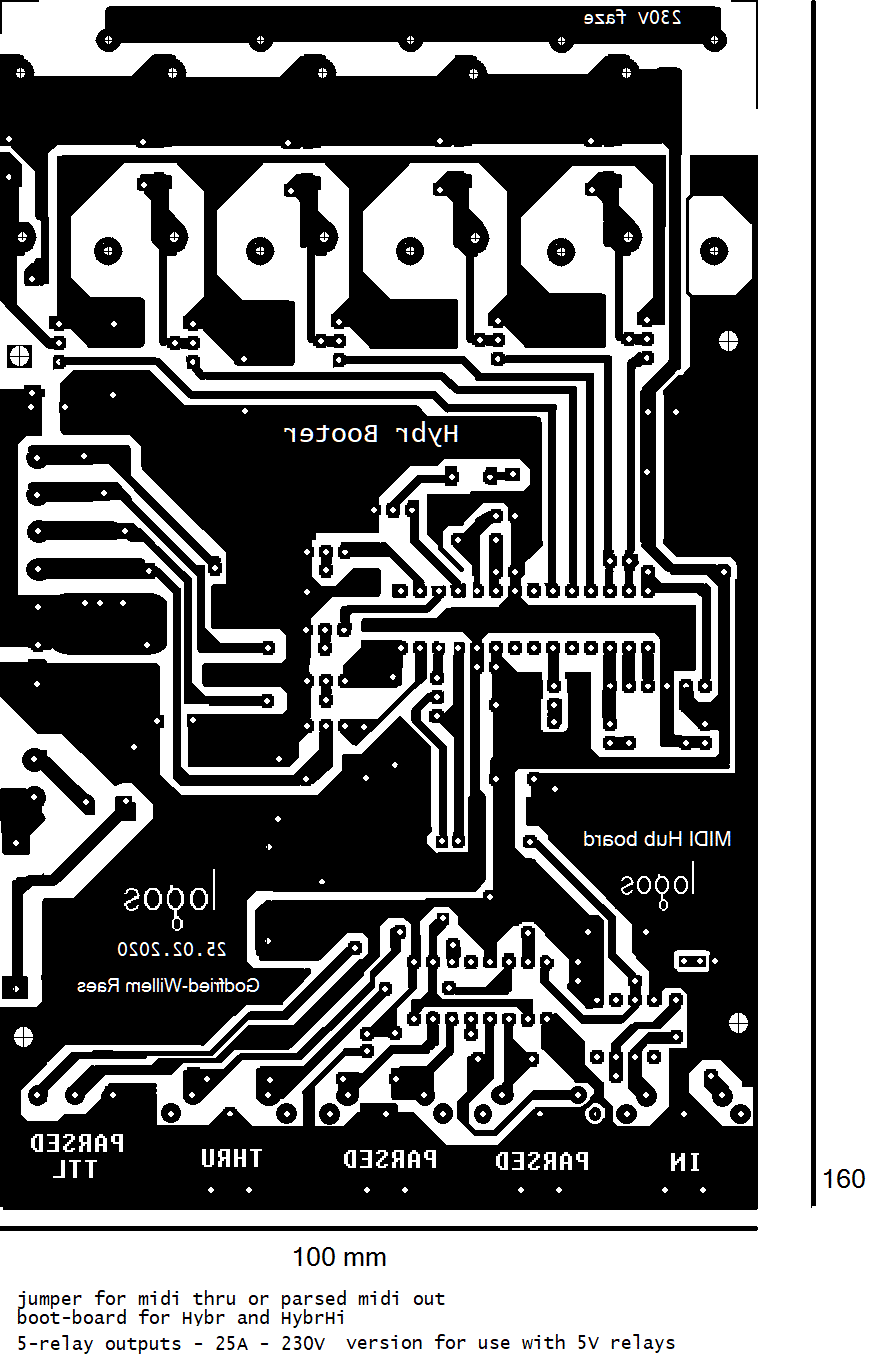

PCB: With soldered components:

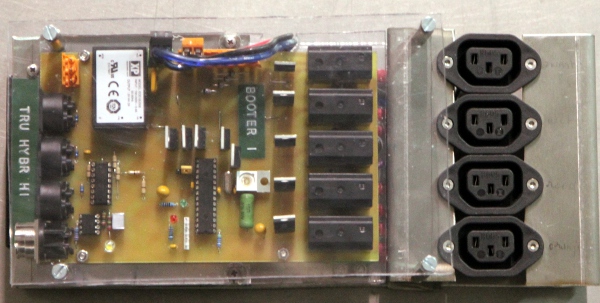

Final result:

Design and construction: dr.Godfried-Willem Raes

Midi implementation:

• As long as controller 66 is ON and startup time has passed, all midi commands implemented on <Hybr> and <HybrHi> are passed thru on the two DIN Parsed-midi out connectors. The third DIN connector is a simple MIDI-Thru, without parsing.
• Some extra features are implemented on this device:
• Lights: mapped op notes 12,13,14,15,16 (as yet, 12,13,14,15 are not connected)
• External mains power sockets (IEC, female) , under midi control mapped on notes 24,25,26,27. Note-On, Note-Off implemented.
• Midi Channel: 9 (1-16) or 8(0-15).

The lights on <Booter> are controlled with note-on/off commands mapped on the notes 12 to 15. For lights 12 and 13, the velocity byte steers the luminance. For notes/lights 14,15,16 the velocity byte steers the flashing speed. With velo=127, the lights are switched on without flashing.

Techical specifications:

• size: w: 120 x d: 280 x h: 80 (in mm)
• Flightcase size:
• weight: 3kg
• transportation: Can be taken as checked luggage in airplanes.
• Power: 100 - 240 V ac / 10 W. At rest, power consumption is less than 3W. Fused with 10A fuse, slow.
• control: MIDI-input, 1 MIDI-Thru (differential), 2 MIDI-Out to connect to Hybr and HybrHi (differential)
• midi channel: 8
• Insurance value: 2.500 Euro.
